Amazon SageMaker Debugger - Using built-in rule
Amazon SageMaker is managed platform to build, train and host maching learning models. Amazon SageMaker Debugger is a new feature which offers the capability to debug machine learning models during training by identifying and detecting problems with the models in near real-time.
In this notebook you’ll be looking at how to use a SageMaker provided built in rule during a TensorFlow training job.
How does Amazon SageMaker Debugger work?
Amazon SageMaker Debugger lets you go beyond just looking at scalars like losses and accuracies during training and gives you full visibility into all tensors ‘flowing through the graph’ during training. Furthermore, it helps you monitor your training in near real-time using rules and provides you alerts, once it has detected inconsistency in training flow.
Concepts
Tensors: These represent the state of the training network at intermediate points during its execution
Debug Hook: Hook is the construct with which Amazon SageMaker Debugger looks into the training process and captures the tensors requested at the desired step intervals
Rule: A logical construct, implemented as Python code, which helps analyze the tensors captured by the hook and report anomalies, if at all
With these concepts in mind, let’s understand the overall flow of things that Amazon SageMaker Debugger uses to orchestrate debugging
Saving tensors during training
The tensors captured by the debug hook are stored in the S3 location specified by you. There are two ways you can configure Amazon SageMaker Debugger to save tensors:
With no changes to your training script
If you use one of Amazon SageMaker provided Deep Learning Containers for 1.15, then you don’t need to make any changes to your training script for the tensors to be stored. Amazon SageMaker Debugger will use the configuration you provide through Amazon SageMaker SDK’s Tensorflow Estimator when creating your job to save the tensors in the fashion you specify. You can review the script we
are going to use at src/mnist_zerocodechange.py. You will note that this is an untouched TensorFlow script which uses the tf.estimator interface. Please note that Amazon SageMaker Debugger only supports tf.keras, tf.Estimator and tf.MonitoredSession interfaces. Full description of support is available at Amazon SageMaker Debugger with TensorFlow
Orchestrating your script to store tensors
For other containers, you need to make couple of lines of changes to your training script. The Amazon SageMaker Debugger exposes a library smdebug which allows you to capture these tensors and save them for analysis. It’s highly customizable and allows to save the specific tensors you want at different frequencies and possibly with other configurations. Refer DeveloperGuide for details on how to use the Debugger library
with your choice of framework in your training script. Here we have an example script orchestrated at src/mnist_byoc. You also need to ensure that your container has the smdebug library installed.
Analysis of tensors
Once the tensors are saved, Amazon SageMaker Debugger can be configured to run debugging *Rules* on them. At a very broad level, a rule is python code used to detect certain conditions during training. Some of the conditions that a data scientist training an algorithm may care about are monitoring for gradients getting too large or too small, detecting overfitting, and so on. Amazon Sagemaker Debugger will come pre-packaged with certain first-party (1P) rules. Users can write their own rules using Amazon Sagemaker Debugger APIs. You can also analyze raw tensor data outside of the Rules construct in say, a Sagemaker notebook, using Amazon Sagemaker Debugger’s full set of APIs. This notebook will show you how to use a built in SageMaker Rule with your training job as well as provide a sneak peak into these APIs for interactive exploration. Please refer Analysis Developer Guide for more on these APIs.
Setup
Follow this one time setup to get your notebook up and running to use Amazon SageMaker Debugger. This is only needed because we plan to perform interactive analysis using this library in the notebook.
[1]:
! pip install smdebug
Requirement already satisfied: smdebug in /opt/conda/lib/python3.7/site-packages (0.7.2)
Requirement already satisfied: boto3>=1.10.32 in /opt/conda/lib/python3.7/site-packages (from smdebug) (1.12.45)
Requirement already satisfied: protobuf>=3.6.0 in /opt/conda/lib/python3.7/site-packages (from smdebug) (3.11.3)
Requirement already satisfied: packaging in /opt/conda/lib/python3.7/site-packages (from smdebug) (20.1)
Requirement already satisfied: numpy<2.0.0,>1.16.0 in /opt/conda/lib/python3.7/site-packages (from smdebug) (1.18.1)
Requirement already satisfied: jmespath<1.0.0,>=0.7.1 in /opt/conda/lib/python3.7/site-packages (from boto3>=1.10.32->smdebug) (0.9.5)
Requirement already satisfied: botocore<1.16.0,>=1.15.45 in /opt/conda/lib/python3.7/site-packages (from boto3>=1.10.32->smdebug) (1.15.45)
Requirement already satisfied: s3transfer<0.4.0,>=0.3.0 in /opt/conda/lib/python3.7/site-packages (from boto3>=1.10.32->smdebug) (0.3.3)
Requirement already satisfied: six>=1.9 in /opt/conda/lib/python3.7/site-packages (from protobuf>=3.6.0->smdebug) (1.14.0)
Requirement already satisfied: setuptools in /opt/conda/lib/python3.7/site-packages (from protobuf>=3.6.0->smdebug) (45.2.0.post20200210)
Requirement already satisfied: pyparsing>=2.0.2 in /opt/conda/lib/python3.7/site-packages (from packaging->smdebug) (2.4.6)
Requirement already satisfied: python-dateutil<3.0.0,>=2.1 in /opt/conda/lib/python3.7/site-packages (from botocore<1.16.0,>=1.15.45->boto3>=1.10.32->smdebug) (2.8.1)
Requirement already satisfied: docutils<0.16,>=0.10 in /opt/conda/lib/python3.7/site-packages (from botocore<1.16.0,>=1.15.45->boto3>=1.10.32->smdebug) (0.15.2)
Requirement already satisfied: urllib3<1.26,>=1.20; python_version != "3.4" in /opt/conda/lib/python3.7/site-packages (from botocore<1.16.0,>=1.15.45->boto3>=1.10.32->smdebug) (1.25.8)
With the setup out of the way let’s start training our TensorFlow model in SageMaker with the debugger enabled.
Training TensorFlow models in SageMaker with Amazon SageMaker Debugger
SageMaker TensorFlow as a framework
We’ll train a TensorFlow model in this notebook with Amazon Sagemaker Debugger enabled and monitor the training jobs with Amazon Sagemaker Debugger Rules. This will be done using Amazon SageMaker TensorFlow 1.15.0 Container as a framework.
[2]:
import boto3
import os
import sagemaker
from sagemaker.tensorflow import TensorFlow
Let’s import the libraries needed for our demo of Amazon SageMaker Debugger.
[3]:
from sagemaker.debugger import (
Rule,
DebuggerHookConfig,
TensorBoardOutputConfig,
CollectionConfig,
rule_configs,
)
Now we’ll define the configuration for our training to run. We’ll using image recognition using MNIST dataset as our training example.
[4]:
# define the entrypoint script
entrypoint_script = "src/mnist_zerocodechange.py"
hyperparameters = {"num_epochs": 3}
Setting up the Estimator
Now it’s time to setup our TensorFlow estimator. We’ve added new parameters to the estimator to enable your training job for debugging through Amazon SageMaker Debugger. These new parameters are explained below.
debugger_hook_config: This new parameter accepts a local path where you wish your tensors to be written to and also accepts the S3 URI where you wish your tensors to be uploaded to. SageMaker will take care of uploading these tensors transparently during execution.
rules: This new parameter will accept a list of rules you wish to evaluate against the tensors output by this training job. For rules, Amazon SageMaker Debugger supports two types:
SageMaker Rules: These are rules specially curated by the data science and engineering teams in Amazon SageMaker which you can opt to evaluate against your training job.
Custom Rules: You can optionally choose to write your own rule as a Python source file and have it evaluated against your training job. To provide Amazon SageMaker Debugger to evaluate this rule, you would have to provide the S3 location of the rule source and the evaluator image.
Using Amazon SageMaker Rules
In this example we’ll demonstrate how to use SageMaker rules to be evaluated against your training. You can find the list of SageMaker rules and the configurations best suited for using them here.
The rules we’ll use are VanishingGradient and LossNotDecreasing. As the names suggest, the rules will attempt to evaluate if there are vanishing gradients in the tensors captured by the debugging hook during training and also if the loss is not decreasing.
[5]:
rules = [
Rule.sagemaker(rule_configs.vanishing_gradient()),
Rule.sagemaker(rule_configs.loss_not_decreasing()),
]
estimator = TensorFlow(
role=sagemaker.get_execution_role(),
base_job_name="smdebugger-demo-mnist-tensorflow",
train_instance_count=1,
train_instance_type="ml.m4.xlarge",
train_volume_size=400,
entry_point=entrypoint_script,
framework_version="1.15",
py_version="py3",
train_max_run=3600,
script_mode=True,
hyperparameters=hyperparameters,
## New parameter
rules=rules,
)
Note that Amazon Sagemaker Debugger is only supported for py_version=’py3’ currently.
Let’s start the training by calling fit() on the TensorFlow estimator.
[6]:
estimator.fit(wait=True)
2020-04-27 23:56:40 Starting - Starting the training job...
2020-04-27 23:57:04 Starting - Launching requested ML instances
********* Debugger Rule Status *********
*
* VanishingGradient: InProgress
* LossNotDecreasing: InProgress
*
****************************************
...
2020-04-27 23:57:36 Starting - Preparing the instances for training.........
2020-04-27 23:59:10 Downloading - Downloading input data
2020-04-27 23:59:10 Training - Downloading the training image...
2020-04-27 23:59:30 Training - Training image download completed. Training in progress..WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_core/__init__.py:1473: The name tf.estimator.inputs is deprecated. Please use tf.compat.v1.estimator.inputs instead.
2020-04-27 23:59:36,257 sagemaker-containers INFO Imported framework sagemaker_tensorflow_container.training
2020-04-27 23:59:36,263 sagemaker-containers INFO No GPUs detected (normal if no gpus installed)
2020-04-27 23:59:36,707 sagemaker-containers INFO No GPUs detected (normal if no gpus installed)
2020-04-27 23:59:36,727 sagemaker-containers INFO No GPUs detected (normal if no gpus installed)
2020-04-27 23:59:36,746 sagemaker-containers INFO No GPUs detected (normal if no gpus installed)
2020-04-27 23:59:36,760 sagemaker-containers INFO Invoking user script
Training Env:
{
"additional_framework_parameters": {},
"channel_input_dirs": {},
"current_host": "algo-1",
"framework_module": "sagemaker_tensorflow_container.training:main",
"hosts": [
"algo-1"
],
"hyperparameters": {
"model_dir": "s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model",
"num_epochs": 3
},
"input_config_dir": "/opt/ml/input/config",
"input_data_config": {},
"input_dir": "/opt/ml/input",
"is_master": true,
"job_name": "smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900",
"log_level": 20,
"master_hostname": "algo-1",
"model_dir": "/opt/ml/model",
"module_dir": "s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/source/sourcedir.tar.gz",
"module_name": "mnist_zerocodechange",
"network_interface_name": "eth0",
"num_cpus": 4,
"num_gpus": 0,
"output_data_dir": "/opt/ml/output/data",
"output_dir": "/opt/ml/output",
"output_intermediate_dir": "/opt/ml/output/intermediate",
"resource_config": {
"current_host": "algo-1",
"hosts": [
"algo-1"
],
"network_interface_name": "eth0"
},
"user_entry_point": "mnist_zerocodechange.py"
}
Environment variables:
SM_HOSTS=["algo-1"]
SM_NETWORK_INTERFACE_NAME=eth0
SM_HPS={"model_dir":"s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model","num_epochs":3}
SM_USER_ENTRY_POINT=mnist_zerocodechange.py
SM_FRAMEWORK_PARAMS={}
SM_RESOURCE_CONFIG={"current_host":"algo-1","hosts":["algo-1"],"network_interface_name":"eth0"}
SM_INPUT_DATA_CONFIG={}
SM_OUTPUT_DATA_DIR=/opt/ml/output/data
SM_CHANNELS=[]
SM_CURRENT_HOST=algo-1
SM_MODULE_NAME=mnist_zerocodechange
SM_LOG_LEVEL=20
SM_FRAMEWORK_MODULE=sagemaker_tensorflow_container.training:main
SM_INPUT_DIR=/opt/ml/input
SM_INPUT_CONFIG_DIR=/opt/ml/input/config
SM_OUTPUT_DIR=/opt/ml/output
SM_NUM_CPUS=4
SM_NUM_GPUS=0
SM_MODEL_DIR=/opt/ml/model
SM_MODULE_DIR=s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/source/sourcedir.tar.gz
SM_TRAINING_ENV={"additional_framework_parameters":{},"channel_input_dirs":{},"current_host":"algo-1","framework_module":"sagemaker_tensorflow_container.training:main","hosts":["algo-1"],"hyperparameters":{"model_dir":"s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model","num_epochs":3},"input_config_dir":"/opt/ml/input/config","input_data_config":{},"input_dir":"/opt/ml/input","is_master":true,"job_name":"smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900","log_level":20,"master_hostname":"algo-1","model_dir":"/opt/ml/model","module_dir":"s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/source/sourcedir.tar.gz","module_name":"mnist_zerocodechange","network_interface_name":"eth0","num_cpus":4,"num_gpus":0,"output_data_dir":"/opt/ml/output/data","output_dir":"/opt/ml/output","output_intermediate_dir":"/opt/ml/output/intermediate","resource_config":{"current_host":"algo-1","hosts":["algo-1"],"network_interface_name":"eth0"},"user_entry_point":"mnist_zerocodechange.py"}
SM_USER_ARGS=["--model_dir","s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model","--num_epochs","3"]
SM_OUTPUT_INTERMEDIATE_DIR=/opt/ml/output/intermediate
SM_HP_MODEL_DIR=s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model
SM_HP_NUM_EPOCHS=3
PYTHONPATH=/opt/ml/code:/usr/local/bin:/usr/lib/python36.zip:/usr/lib/python3.6:/usr/lib/python3.6/lib-dynload:/usr/local/lib/python3.6/dist-packages:/usr/lib/python3/dist-packages
Invoking script with the following command:
/usr/bin/python3 mnist_zerocodechange.py --model_dir s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model --num_epochs 3
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_core/__init__.py:1473: The name tf.estimator.inputs is deprecated. Please use tf.compat.v1.estimator.inputs instead.
Downloading data from https://storage.googleapis.com/tensorflow/tf-keras-datasets/mnist.npz
#015 8192/11490434 [..............................] - ETA: 0s#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#015 106496/11490434 [..............................] - ETA: 5s#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#015 737280/11490434 [>.............................] - ETA: 1s#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#015 5210112/11490434 [============>.................] - ETA: 0s#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#015 6987776/11490434 [=================>............] - ETA: 0s#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#010#01511493376/11490434 [==============================] - 0s 0us/step
INFO:tensorflow:Using default config.
INFO:tensorflow:Using config: {'_model_dir': 's3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model', '_tf_random_seed': None, '_save_summary_steps': 100, '_save_checkpoints_steps': None, '_save_checkpoints_secs': 600, '_session_config': allow_soft_placement: true
graph_options {
rewrite_options {
meta_optimizer_iterations: ONE
}
}
, '_keep_checkpoint_max': 5, '_keep_checkpoint_every_n_hours': 10000, '_log_step_count_steps': 100, '_train_distribute': None, '_device_fn': None, '_protocol': None, '_eval_distribute': None, '_experimental_distribute': None, '_experimental_max_worker_delay_secs': None, '_session_creation_timeout_secs': 7200, '_service': None, '_cluster_spec': <tensorflow.python.training.server_lib.ClusterSpec object at 0x7fb77f42d1d0>, '_task_type': 'worker', '_task_id': 0, '_global_id_in_cluster': 0, '_master': '', '_evaluation_master': '', '_is_chief': True, '_num_ps_replicas': 0, '_num_worker_replicas': 1}
WARNING:tensorflow:From mnist_zerocodechange.py:114: The name tf.estimator.inputs.numpy_input_fn is deprecated. Please use tf.compat.v1.estimator.inputs.numpy_input_fn instead.
[2020-04-27 23:59:39.646 ip-10-0-201-124.us-east-2.compute.internal:26 INFO json_config.py:90] Creating hook from json_config at /opt/ml/input/config/debughookconfig.json.
[2020-04-27 23:59:39.647 ip-10-0-201-124.us-east-2.compute.internal:26 INFO hook.py:183] tensorboard_dir has not been set for the hook. SMDebug will not be exporting tensorboard summaries.
[2020-04-27 23:59:39.647 ip-10-0-201-124.us-east-2.compute.internal:26 INFO hook.py:228] Saving to /opt/ml/output/tensors
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_core/python/training/training_util.py:236: Variable.initialized_value (from tensorflow.python.ops.variables) is deprecated and will be removed in a future version.
Instructions for updating:
Use Variable.read_value. Variables in 2.X are initialized automatically both in eager and graph (inside tf.defun) contexts.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_core/python/training/training_util.py:236: Variable.initialized_value (from tensorflow.python.ops.variables) is deprecated and will be removed in a future version.
Instructions for updating:
Use Variable.read_value. Variables in 2.X are initialized automatically both in eager and graph (inside tf.defun) contexts.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_estimator/python/estimator/inputs/queues/feeding_queue_runner.py:62: QueueRunner.__init__ (from tensorflow.python.training.queue_runner_impl) is deprecated and will be removed in a future version.
Instructions for updating:
To construct input pipelines, use the `tf.data` module.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_estimator/python/estimator/inputs/queues/feeding_queue_runner.py:62: QueueRunner.__init__ (from tensorflow.python.training.queue_runner_impl) is deprecated and will be removed in a future version.
Instructions for updating:
To construct input pipelines, use the `tf.data` module.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_estimator/python/estimator/inputs/queues/feeding_functions.py:500: add_queue_runner (from tensorflow.python.training.queue_runner_impl) is deprecated and will be removed in a future version.
Instructions for updating:
To construct input pipelines, use the `tf.data` module.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_estimator/python/estimator/inputs/queues/feeding_functions.py:500: add_queue_runner (from tensorflow.python.training.queue_runner_impl) is deprecated and will be removed in a future version.
Instructions for updating:
To construct input pipelines, use the `tf.data` module.
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Calling model_fn.
WARNING:tensorflow:From mnist_zerocodechange.py:54: conv2d (from tensorflow.python.layers.convolutional) is deprecated and will be removed in a future version.
Instructions for updating:
Use `tf.keras.layers.Conv2D` instead.
WARNING:tensorflow:From mnist_zerocodechange.py:54: conv2d (from tensorflow.python.layers.convolutional) is deprecated and will be removed in a future version.
Instructions for updating:
Use `tf.keras.layers.Conv2D` instead.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_core/python/layers/convolutional.py:424: Layer.apply (from tensorflow.python.keras.engine.base_layer) is deprecated and will be removed in a future version.
Instructions for updating:
Please use `layer.__call__` method instead.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_core/python/layers/convolutional.py:424: Layer.apply (from tensorflow.python.keras.engine.base_layer) is deprecated and will be removed in a future version.
Instructions for updating:
Please use `layer.__call__` method instead.
WARNING:tensorflow:From mnist_zerocodechange.py:58: max_pooling2d (from tensorflow.python.layers.pooling) is deprecated and will be removed in a future version.
Instructions for updating:
Use keras.layers.MaxPooling2D instead.
WARNING:tensorflow:From mnist_zerocodechange.py:58: max_pooling2d (from tensorflow.python.layers.pooling) is deprecated and will be removed in a future version.
Instructions for updating:
Use keras.layers.MaxPooling2D instead.
WARNING:tensorflow:From mnist_zerocodechange.py:68: dense (from tensorflow.python.layers.core) is deprecated and will be removed in a future version.
Instructions for updating:
Use keras.layers.Dense instead.
WARNING:tensorflow:From mnist_zerocodechange.py:68: dense (from tensorflow.python.layers.core) is deprecated and will be removed in a future version.
Instructions for updating:
Use keras.layers.Dense instead.
WARNING:tensorflow:From mnist_zerocodechange.py:70: dropout (from tensorflow.python.layers.core) is deprecated and will be removed in a future version.
Instructions for updating:
Use keras.layers.dropout instead.
WARNING:tensorflow:From mnist_zerocodechange.py:70: dropout (from tensorflow.python.layers.core) is deprecated and will be removed in a future version.
Instructions for updating:
Use keras.layers.dropout instead.
WARNING:tensorflow:From mnist_zerocodechange.py:88: The name tf.losses.sparse_softmax_cross_entropy is deprecated. Please use tf.compat.v1.losses.sparse_softmax_cross_entropy instead.
WARNING:tensorflow:From mnist_zerocodechange.py:88: The name tf.losses.sparse_softmax_cross_entropy is deprecated. Please use tf.compat.v1.losses.sparse_softmax_cross_entropy instead.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_core/python/ops/losses/losses_impl.py:121: where (from tensorflow.python.ops.array_ops) is deprecated and will be removed in a future version.
Instructions for updating:
Use tf.where in 2.0, which has the same broadcast rule as np.where
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_core/python/ops/losses/losses_impl.py:121: where (from tensorflow.python.ops.array_ops) is deprecated and will be removed in a future version.
Instructions for updating:
Use tf.where in 2.0, which has the same broadcast rule as np.where
WARNING:tensorflow:From mnist_zerocodechange.py:92: The name tf.train.GradientDescentOptimizer is deprecated. Please use tf.compat.v1.train.GradientDescentOptimizer instead.
WARNING:tensorflow:From mnist_zerocodechange.py:92: The name tf.train.GradientDescentOptimizer is deprecated. Please use tf.compat.v1.train.GradientDescentOptimizer instead.
WARNING:tensorflow:From mnist_zerocodechange.py:93: The name tf.train.get_global_step is deprecated. Please use tf.compat.v1.train.get_global_step instead.
WARNING:tensorflow:From mnist_zerocodechange.py:93: The name tf.train.get_global_step is deprecated. Please use tf.compat.v1.train.get_global_step instead.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Create CheckpointSaverHook.
INFO:tensorflow:Create CheckpointSaverHook.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/horovod/tensorflow/__init__.py:117: The name tf.global_variables is deprecated. Please use tf.compat.v1.global_variables instead.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/horovod/tensorflow/__init__.py:117: The name tf.global_variables is deprecated. Please use tf.compat.v1.global_variables instead.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/horovod/tensorflow/__init__.py:143: The name tf.get_default_graph is deprecated. Please use tf.compat.v1.get_default_graph instead.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/horovod/tensorflow/__init__.py:143: The name tf.get_default_graph is deprecated. Please use tf.compat.v1.get_default_graph instead.
[2020-04-27 23:59:40.256 ip-10-0-201-124.us-east-2.compute.internal:26 INFO hook.py:364] Monitoring the collections: gradients, losses, sm_metrics, metrics
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Done running local_init_op.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_core/python/training/monitored_session.py:888: start_queue_runners (from tensorflow.python.training.queue_runner_impl) is deprecated and will be removed in a future version.
Instructions for updating:
To construct input pipelines, use the `tf.data` module.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow_core/python/training/monitored_session.py:888: start_queue_runners (from tensorflow.python.training.queue_runner_impl) is deprecated and will be removed in a future version.
Instructions for updating:
To construct input pipelines, use the `tf.data` module.
INFO:tensorflow:Saving checkpoints for 0 into s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model/model.ckpt.
INFO:tensorflow:Saving checkpoints for 0 into s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model/model.ckpt.
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/smdebug/tensorflow/session.py:304: extract_sub_graph (from tensorflow.python.framework.graph_util_impl) is deprecated and will be removed in a future version.
Instructions for updating:
Use `tf.compat.v1.graph_util.extract_sub_graph`
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/smdebug/tensorflow/session.py:304: extract_sub_graph (from tensorflow.python.framework.graph_util_impl) is deprecated and will be removed in a future version.
Instructions for updating:
Use `tf.compat.v1.graph_util.extract_sub_graph`
INFO:tensorflow:loss = 2.3208826, step = 1
INFO:tensorflow:loss = 2.3208826, step = 1
ERROR:root:'NoneType' object has no attribute 'write'
INFO:tensorflow:global_step/sec: 7.73273
INFO:tensorflow:global_step/sec: 7.73273
INFO:tensorflow:loss = 2.2985032, step = 101 (12.933 sec)
INFO:tensorflow:loss = 2.2985032, step = 101 (12.933 sec)
INFO:tensorflow:global_step/sec: 8.0584
INFO:tensorflow:global_step/sec: 8.0584
INFO:tensorflow:loss = 2.2796118, step = 201 (12.409 sec)
INFO:tensorflow:loss = 2.2796118, step = 201 (12.409 sec)
INFO:tensorflow:global_step/sec: 8.16216
INFO:tensorflow:global_step/sec: 8.16216
INFO:tensorflow:loss = 2.2400365, step = 301 (12.252 sec)
INFO:tensorflow:loss = 2.2400365, step = 301 (12.252 sec)
INFO:tensorflow:global_step/sec: 8.20902
INFO:tensorflow:global_step/sec: 8.20902
INFO:tensorflow:loss = 2.244422, step = 401 (12.182 sec)
INFO:tensorflow:loss = 2.244422, step = 401 (12.182 sec)
INFO:tensorflow:global_step/sec: 8.29027
INFO:tensorflow:global_step/sec: 8.29027
INFO:tensorflow:loss = 2.2057943, step = 501 (12.062 sec)
INFO:tensorflow:loss = 2.2057943, step = 501 (12.062 sec)
INFO:tensorflow:global_step/sec: 8.12505
INFO:tensorflow:global_step/sec: 8.12505
INFO:tensorflow:loss = 2.1722574, step = 601 (12.308 sec)
INFO:tensorflow:loss = 2.1722574, step = 601 (12.308 sec)
INFO:tensorflow:global_step/sec: 8.21211
INFO:tensorflow:global_step/sec: 8.21211
INFO:tensorflow:loss = 2.126483, step = 701 (12.177 sec)
INFO:tensorflow:loss = 2.126483, step = 701 (12.177 sec)
INFO:tensorflow:global_step/sec: 8.54074
INFO:tensorflow:global_step/sec: 8.54074
INFO:tensorflow:loss = 2.0739117, step = 801 (11.708 sec)
INFO:tensorflow:loss = 2.0739117, step = 801 (11.708 sec)
INFO:tensorflow:global_step/sec: 8.60594
INFO:tensorflow:global_step/sec: 8.60594
INFO:tensorflow:loss = 2.023419, step = 901 (11.620 sec)
INFO:tensorflow:loss = 2.023419, step = 901 (11.620 sec)
INFO:tensorflow:global_step/sec: 8.60855
INFO:tensorflow:global_step/sec: 8.60855
INFO:tensorflow:loss = 1.9700434, step = 1001 (11.791 sec)
INFO:tensorflow:loss = 1.9700434, step = 1001 (11.791 sec)
INFO:tensorflow:global_step/sec: 8.33646
INFO:tensorflow:global_step/sec: 8.33646
INFO:tensorflow:loss = 1.8422208, step = 1101 (11.821 sec)
INFO:tensorflow:loss = 1.8422208, step = 1101 (11.821 sec)
INFO:tensorflow:global_step/sec: 8.58772
INFO:tensorflow:global_step/sec: 8.58772
INFO:tensorflow:loss = 1.7151158, step = 1201 (11.644 sec)
INFO:tensorflow:loss = 1.7151158, step = 1201 (11.644 sec)
INFO:tensorflow:global_step/sec: 8.54481
INFO:tensorflow:global_step/sec: 8.54481
INFO:tensorflow:loss = 1.4826751, step = 1301 (11.703 sec)
INFO:tensorflow:loss = 1.4826751, step = 1301 (11.703 sec)
2020-04-28 00:02:39 Uploading - Uploading generated training modelINFO:tensorflow:global_step/sec: 8.40044
INFO:tensorflow:global_step/sec: 8.40044
INFO:tensorflow:loss = 1.3823929, step = 1401 (11.904 sec)
INFO:tensorflow:loss = 1.3823929, step = 1401 (11.904 sec)
INFO:tensorflow:Saving checkpoints for 1407 into s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model/model.ckpt.
INFO:tensorflow:Saving checkpoints for 1407 into s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model/model.ckpt.
INFO:tensorflow:Loss for final step: 1.3139015.
INFO:tensorflow:Loss for final step: 1.3139015.
INFO:tensorflow:Calling model_fn.
INFO:tensorflow:Calling model_fn.
WARNING:tensorflow:From mnist_zerocodechange.py:98: The name tf.metrics.accuracy is deprecated. Please use tf.compat.v1.metrics.accuracy instead.
WARNING:tensorflow:From mnist_zerocodechange.py:98: The name tf.metrics.accuracy is deprecated. Please use tf.compat.v1.metrics.accuracy instead.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Done calling model_fn.
INFO:tensorflow:Starting evaluation at 2020-04-28T00:02:32Z
INFO:tensorflow:Starting evaluation at 2020-04-28T00:02:32Z
[2020-04-28 00:02:32.878 ip-10-0-201-124.us-east-2.compute.internal:26 INFO hook.py:364] Monitoring the collections: gradients, losses, sm_metrics, metrics
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Graph was finalized.
INFO:tensorflow:Restoring parameters from s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model/model.ckpt-1407
INFO:tensorflow:Restoring parameters from s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model/model.ckpt-1407
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Done running local_init_op.
INFO:tensorflow:Finished evaluation at 2020-04-28-00:02:36
INFO:tensorflow:Finished evaluation at 2020-04-28-00:02:36
INFO:tensorflow:Saving dict for global step 1407: accuracy = 0.7942, global_step = 1407, loss = 1.2718687
INFO:tensorflow:Saving dict for global step 1407: accuracy = 0.7942, global_step = 1407, loss = 1.2718687
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 1407: s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model/model.ckpt-1407
INFO:tensorflow:Saving 'checkpoint_path' summary for global step 1407: s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/model/model.ckpt-1407
[2020-04-28 00:02:37.390 ip-10-0-201-124.us-east-2.compute.internal:26 INFO utils.py:25] The end of training job file will not be written for jobs running under SageMaker.
2020-04-28 00:02:37,661 sagemaker_tensorflow_container.training WARNING No model artifact is saved under path /opt/ml/model. Your training job will not save any model files to S3.
For details of how to construct your training script see:
https://sagemaker.readthedocs.io/en/stable/using_tf.html#adapting-your-local-tensorflow-script
2020-04-28 00:02:37,662 sagemaker-containers INFO Reporting training SUCCESS
2020-04-28 00:03:10 Completed - Training job completed
********* Debugger Rule Status *********
*
* VanishingGradient: NoIssuesFound
* LossNotDecreasing: NoIssuesFound
*
****************************************
Training seconds: 241
Billable seconds: 241
Result
As a result of calling the fit() Amazon SageMaker Debugger kicked off two rule evaluation jobs to monitor vanishing gradient and loss decrease, in parallel with the training job. The rule evaluation status(es) will be visible in the training logs at regular intervals. As you can see, in the summary, there was no step in the training which reported vanishing gradients in the tensors. Although, the loss was not found to be decreasing at step 1900.
[8]:
estimator.latest_training_job.rule_job_summary()
[8]:
[{'RuleConfigurationName': 'VanishingGradient',
'RuleEvaluationJobArn': 'arn:aws:sagemaker:us-east-2:441510144314:processing-job/smdebugger-demo-mnist-tens-vanishinggradient-5268f8d7',
'RuleEvaluationStatus': 'NoIssuesFound',
'LastModifiedTime': datetime.datetime(2020, 4, 28, 0, 3, 10, 18000, tzinfo=tzlocal())},
{'RuleConfigurationName': 'LossNotDecreasing',
'RuleEvaluationJobArn': 'arn:aws:sagemaker:us-east-2:441510144314:processing-job/smdebugger-demo-mnist-tens-lossnotdecreasing-5793ad60',
'RuleEvaluationStatus': 'NoIssuesFound',
'LastModifiedTime': datetime.datetime(2020, 4, 28, 0, 3, 10, 18000, tzinfo=tzlocal())}]
Let’s try and look at the logs of the rule job for loss not decreasing. To do that, we’ll use this utlity function to get a link to the rule job logs.
[9]:
def _get_rule_job_name(training_job_name, rule_configuration_name, rule_job_arn):
"""Helper function to get the rule job name with correct casing"""
return "{}-{}-{}".format(
training_job_name[:26], rule_configuration_name[:26], rule_job_arn[-8:]
)
def _get_cw_url_for_rule_job(rule_job_name, region):
return "https://{}.console.aws.amazon.com/cloudwatch/home?region={}#logStream:group=/aws/sagemaker/ProcessingJobs;prefix={};streamFilter=typeLogStreamPrefix".format(
region, region, rule_job_name
)
def get_rule_jobs_cw_urls(estimator):
region = boto3.Session().region_name
training_job = estimator.latest_training_job
training_job_name = training_job.describe()["TrainingJobName"]
rule_eval_statuses = training_job.describe()["DebugRuleEvaluationStatuses"]
result = {}
for status in rule_eval_statuses:
if status.get("RuleEvaluationJobArn", None) is not None:
rule_job_name = _get_rule_job_name(
training_job_name, status["RuleConfigurationName"], status["RuleEvaluationJobArn"]
)
result[status["RuleConfigurationName"]] = _get_cw_url_for_rule_job(
rule_job_name, region
)
return result
get_rule_jobs_cw_urls(estimator)
[9]:
{'VanishingGradient': 'https://us-east-2.console.aws.amazon.com/cloudwatch/home?region=us-east-2#logStream:group=/aws/sagemaker/ProcessingJobs;prefix=smdebugger-demo-mnist-tens-VanishingGradient-5268f8d7;streamFilter=typeLogStreamPrefix',
'LossNotDecreasing': 'https://us-east-2.console.aws.amazon.com/cloudwatch/home?region=us-east-2#logStream:group=/aws/sagemaker/ProcessingJobs;prefix=smdebugger-demo-mnist-tens-LossNotDecreasing-5793ad60;streamFilter=typeLogStreamPrefix'}
Data Analysis - Interactive Exploration
Now that we have trained a job, and looked at automated analysis through rules, let us also look at another aspect of Amazon SageMaker Debugger. It allows us to perform interactive exploration of the tensors saved in real time or after the job. Here we focus on after-the-fact analysis of the above job. We import the smdebug library, which defines a concept of Trial that represents a single training run. Note how we fetch the path to debugger artifacts for the above job.
[10]:
from smdebug.trials import create_trial
trial = create_trial(estimator.latest_job_debugger_artifacts_path())
[2020-04-28 00:07:09.068 f8455ab5c5ab:546 INFO s3_trial.py:42] Loading trial debug-output at path s3://sagemaker-us-east-2-441510144314/smdebugger-demo-mnist-tensorflow-2020-04-27-23-56-39-900/debug-output
We can list all the tensors that were recorded to know what we want to plot. Each one of these names is the name of a tensor, which is auto-assigned by TensorFlow. In some frameworks where such names are not available, we try to create a name based on the layer’s name and whether it is weight, bias, gradient, input or output.
[11]:
trial.tensor_names()
[2020-04-28 00:07:11.217 f8455ab5c5ab:546 INFO trial.py:198] Training has ended, will refresh one final time in 1 sec.
[2020-04-28 00:07:12.236 f8455ab5c5ab:546 INFO trial.py:210] Loaded all steps
[11]:
['gradients/conv2d/BiasAdd_grad/tuple/control_dependency_1:0',
'gradients/conv2d/Conv2D_grad/tuple/control_dependency_1:0',
'gradients/conv2d_1/BiasAdd_grad/tuple/control_dependency_1:0',
'gradients/conv2d_1/Conv2D_grad/tuple/control_dependency_1:0',
'gradients/dense/BiasAdd_grad/tuple/control_dependency_1:0',
'gradients/dense/MatMul_grad/tuple/control_dependency_1:0',
'gradients/dense_1/BiasAdd_grad/tuple/control_dependency_1:0',
'gradients/dense_1/MatMul_grad/tuple/control_dependency_1:0',
'sparse_softmax_cross_entropy_loss/value:0']
We can also retrieve tensors by some default collections that smdebug creates from your training job. Here we are interested in the losses collection, so we can retrieve the names of tensors in losses collection as follows. Amazon SageMaker Debugger creates default collections such as weights, gradients, biases, losses automatically. You can also create custom collections from your tensors.
[12]:
trial.tensor_names(collection="losses")
[12]:
['sparse_softmax_cross_entropy_loss/value:0']
[13]:
import matplotlib.pyplot as plt
import re
# Define a function that, for the given tensor name, walks through all
# the iterations for which we have data and fetches the value.
# Returns the set of steps and the values
def get_data(trial, tname):
tensor = trial.tensor(tname)
steps = tensor.steps()
vals = [tensor.value(s) for s in steps]
return steps, vals
def plot_tensors(trial, collection_name, ylabel=""):
"""
Takes a `trial` and plots all tensors that match the given regex.
"""
plt.figure(num=1, figsize=(8, 8), dpi=80, facecolor="w", edgecolor="k")
tensors = trial.tensor_names(collection=collection_name)
for tensor_name in sorted(tensors):
steps, data = get_data(trial, tensor_name)
plt.plot(steps, data, label=tensor_name)
plt.legend(bbox_to_anchor=(1.04, 1), loc="upper left")
plt.xlabel("Iteration")
plt.ylabel(ylabel)
plt.show()

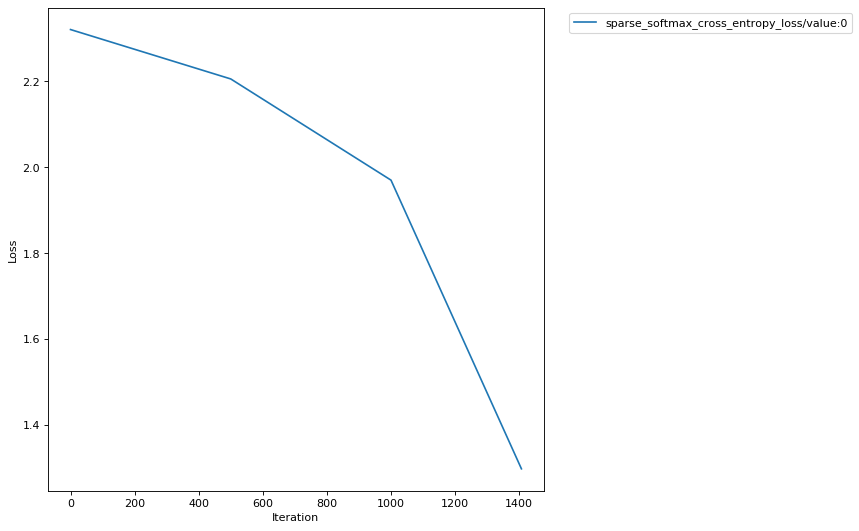

plot_tensors(trial, "losses", ylabel="Loss")
[ ]:
